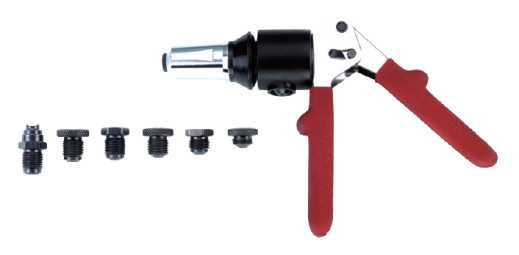

Hand Hydraulic Riveter





Item No.: CH1211363

Hand Hydraulic Riveter

Description:

* This riveter is designed to set from 1/8”(3.2mm) up to 1/4”(6.4mm) diameter steel, stainless steel, aluminum and plastic rivets by changing the nosepiece.

* This riveter has a rated pull pressure of over 3500 ibs and one handed operation is possible.

* Easy to use in narrow areas

Specification:

* Tracking power: 3500lbs(1589kg)

* Stroke: 15.8mm (5/8”)

* Riveting capacity: 1/4”~1/8” all materials

* Weight: 550g
